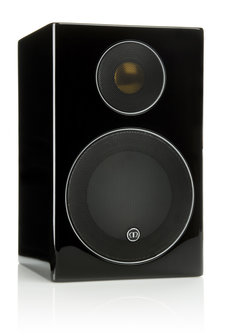

For ultra-discreet sound all around the home, or partnered with the Radius 380 sub for explosive stereo, the original hi-fi mini monitor continues to evolve, incorporating a 4” C-CAM® bass driver and 1” C-CAM tweeter.
Frequency Response
80Hz - 35KHz
Sensitivity
83dB
Nominal Impedance
8 Ohms
Power Handling Single (RMS)
75 Watts
System Power Handling (RMS)
100 Watts
Recommended Amplifier Requirements
30-100 Watts
Maximum SPL (dBA)
102
Bass Alignment
Bass reflex - Rear ported
Driver complement
1 x 4” (100mm) C-CAM® cone bass/mid driver
1 x 1” (25mm) C-CAM gold dome tweeter
Cabinet Dimensions (H x W x D)
198 x 125 x 140mm
(713/16 x 415/16 x 51/2 Inches)
Cabinet Dimensions (H x W x D)(Inc Grille & Terminals)
198 x 125 x 164mm
(713/16 x 415/16 x 67/16 Inches)
Cabinet Dimensions (H x W x D)(Inc Grille & Bracket)
198 x 125 x 203mm
(713/16 x 415/16 x 8 Inches)
Bracket
Optional - Monitor Audio Speaker Mount (MASM)
Weight
2.1kg (4lb 10oz)
