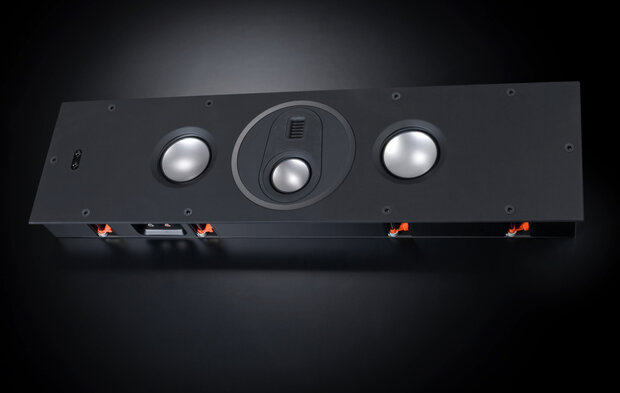

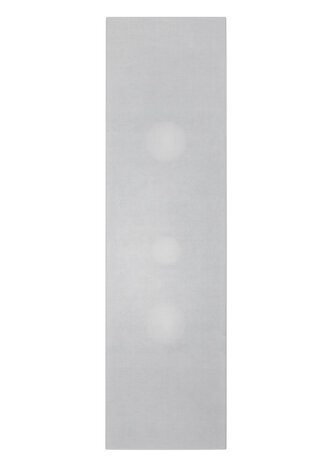

The Platinum In-Wall II is a three-way reference architectural speaker system, perfect for custom home theatre projects where lifelike scale and dynamics are demanded.

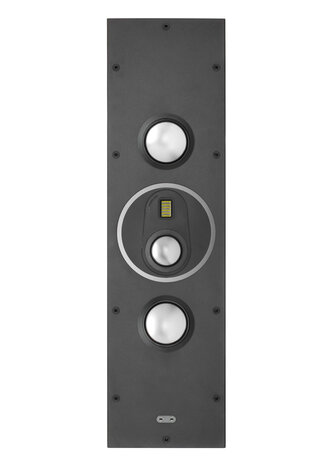

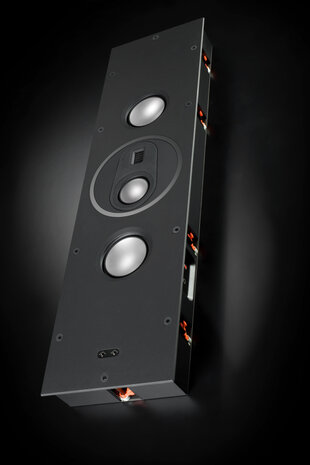

Equipped with an adjustable mid/high frequency driver array, the In-Wall is able to deliver pin-point audio imaging and consistency from both vertical or horizontal positions.

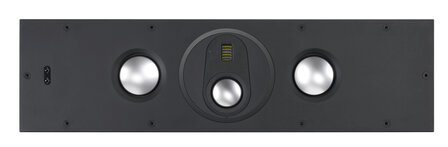

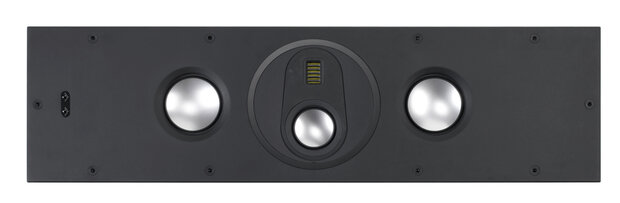

By rotating the array though 90 degrees at the centre of a LCR configuration for instance, a soundstage of three Platinum In-Wall IIs will generate the seamless tonal integrity of the finest boxed systems from a stealthy in-wall location.
Technology

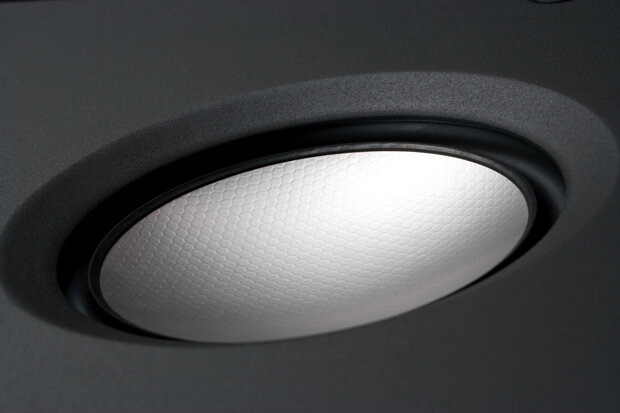

- 2 x 61/2" RDT II bass drivers

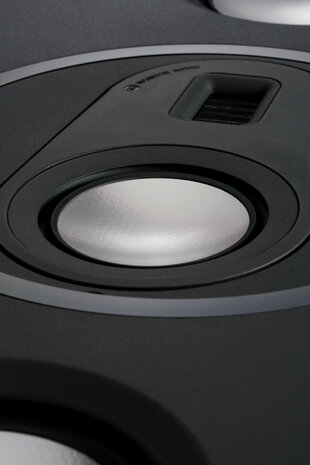

- 4" RDT II mid-range driver
- MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
- New patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound

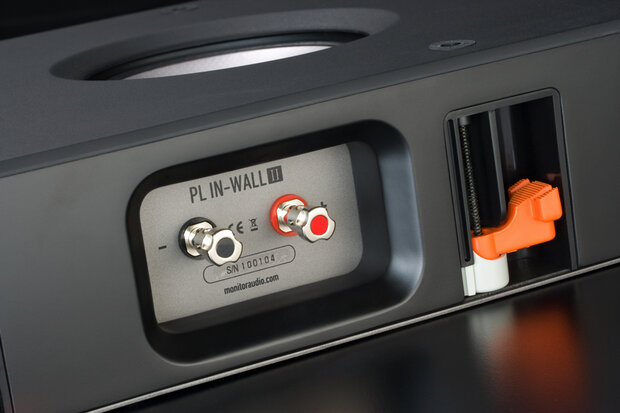

- Bespoke speaker terminals and footings
- Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
- Bolt through drivers: clearer sound and cleaner aesthetics
- Rigid cabinet construction made from 25 mm MDF with steel back
- Extensive internal bracing using thick MDF cross bracing techniques
Specifications:
System Format
3 Way — 4 Driver
Frequency Response (-6 dB - IEC 268-13)
52 Hz — 100 kHz
Sensitivity (1W@1M)
90 dB
Maximum SPL
117 dBA (pair)
Nominal Impedance
4 ohms (3.7 ohms min. @ 2.8 KHz)
Power Handling (RMS)
200 W
Recommended Amplifier Requirements
100 — 200 W
Cabinet Design
Sealed Cabinet
Drive Unit Complement
2 x 61/2" RDT II bass drivers
1 x 4" RDT II mid-range driver
1 x MPD high frequency transducer
Mid / H.F Crossover Frequency
4.1 kHz 3rd Order (18 dB/Octave)
Bass / Midrange Crossover Frequency (Hz)
700 Hz/ 2nd Order (12 dB/Octave)
Fixing Type
10 x Tri-Grip dog leg type fixing system
Dimensions (H x W x D)
1205 x 330 x 102 mm (477/16 x 13 x 4")
Cut-Out Depth
97.5 mm (313/16")
Weight (each)
27 kg (59.4 lb)
