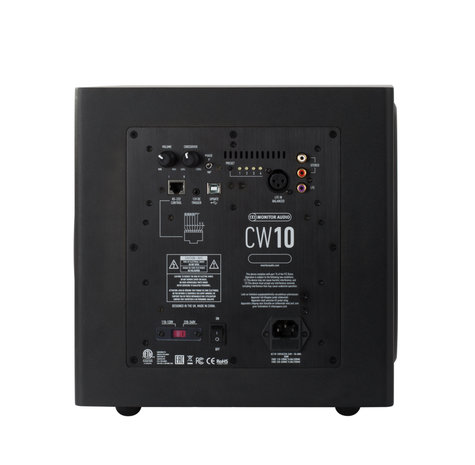

Each little bass-engine is generously specified with custom installation in mind, providing versatile input and control options including RS232 and a dedicated Subconnect PC applet via a wired USB interface.

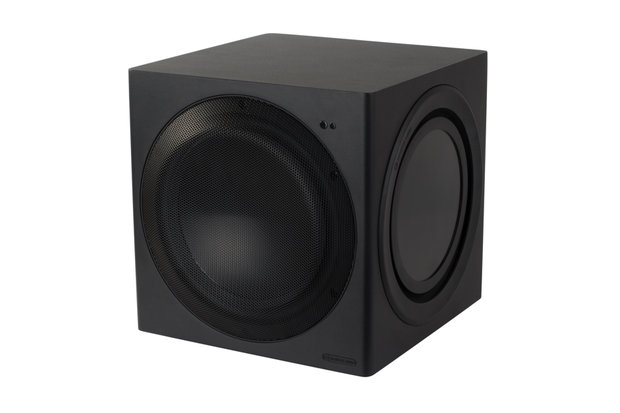

The compact rigid 18 mm MDF cubic cabinets with regular 30 cm dimensions incorporate no fewer than three robust, similarly sized 10" C-CAM drivers. Each system array comprises an active high-excursion drive unit powered and trimmed by potent DSP-tuned amplification, together with twin side-mounted ABRs (Auxiliary Bass Radiators).
Specifications:
System Format
Active sub-woofer system – twin ABR. 18 mm MDF cabinet (CARB2 approved)
Lower Frequency Limit
32 Hz (-6 dB)
Amplifier Output
400 W RMS @ < 1% THD+N
Maximum SPL
105.8 dBA
Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)
Inputs
Stereo RCA LFE (RCA) LFE Balanced (XLR)
EQ
Flat/ Music/ Movie/ Impact
Phase Control
0 & 180 degrees
Auto Sensing
LFE Input <2mV Auto wireless audio input signal detection
Auto Standby
After approximately 15 minutes if no signal sensed Wireless audio source turned off
Drive Unit Complement
1 x 10" (250 mm) C-CAM long throw driver, 2 x 10" (250 mm) ABR
Input Impedance
> 20 ohms
Mains Input Voltage
110 - 120 Vac / 220 - 240 Vac 50/60Hz (Manual Switch selection)
Dimensions (Including Feet (H x W x D))
315 x 305 x 320 mm (123/8 x 12 x 125/8")
Trigger Input
5 - 12 V via 3.5 mm mono mini-jack socket
Power Consumption
Standby: < 0.5 W (ErP approved) Typical Idle: < 10 W Max Rated: 400 W
