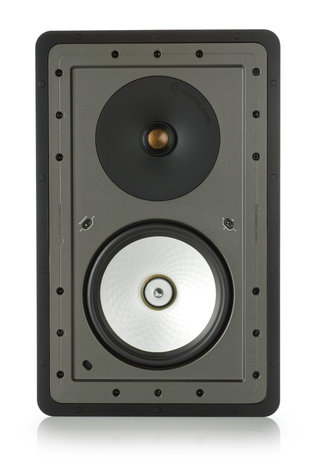

Alongside a pivoting C-CAM tweeter, the CP-WT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

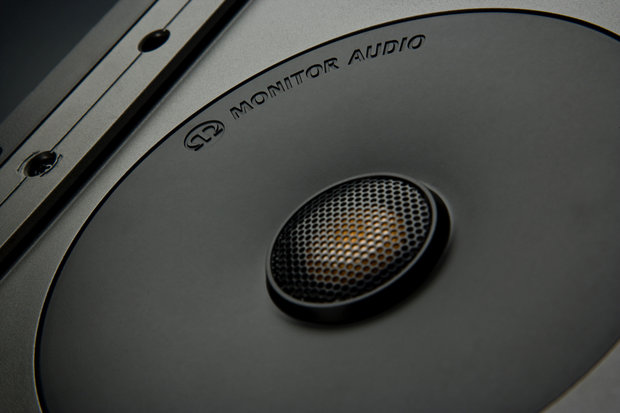

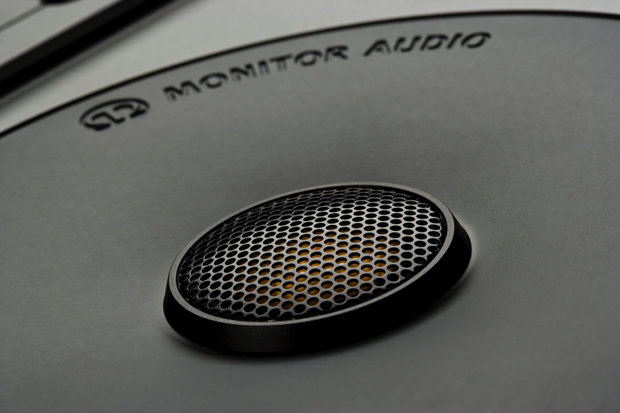

- Pivoting C-CAM Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Boundary compensation controls.
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specifications:
Frequency Response
50 Hz - 25 kHz
Nominal Impedance
6 Ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
109.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 - 120 W
Crossover Frequency
2.5 kHz @ 12 dB / Octave
Drive Unit Complement
2-Way
8” C-CAM RST cone bass driver
1” C-CAM pivoting Gold Dome tweeter
Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Dimensions (H x W x D)
472.5 x 303.5 mm (18 5/8 x 11 15/16 inches)
Overall Depth (Including Grille)
106 mm (4 3/16 inches)
Cut-Out Dimensions
438 x 269 mm (17 1/4 x 10 9/16 inches)
Mounting Depth
99 mm (3 7/8 inches)
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(RoHS2 Compliant)
Weight
4.95 kg (10 lb 14 oz)
Pre-Construction Bracket
WB10 Pre-Construction Bracket (Light Brown)
