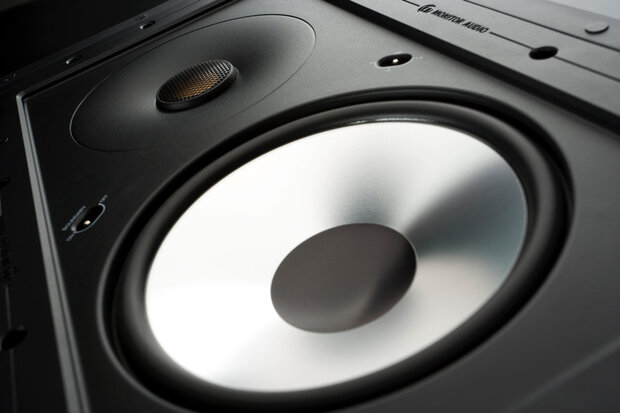

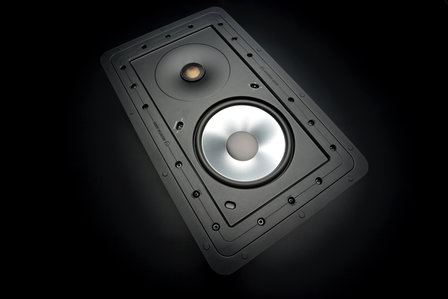

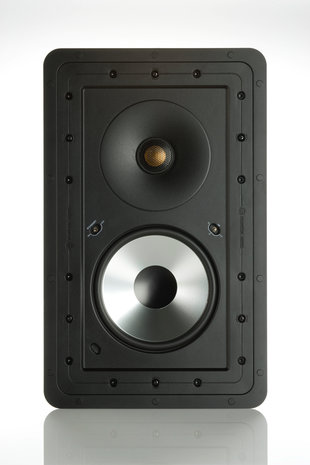

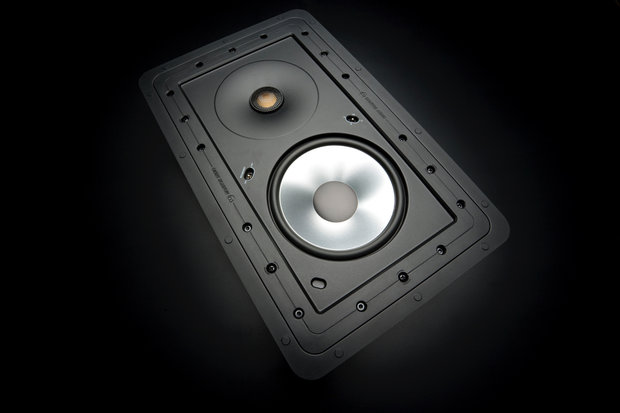

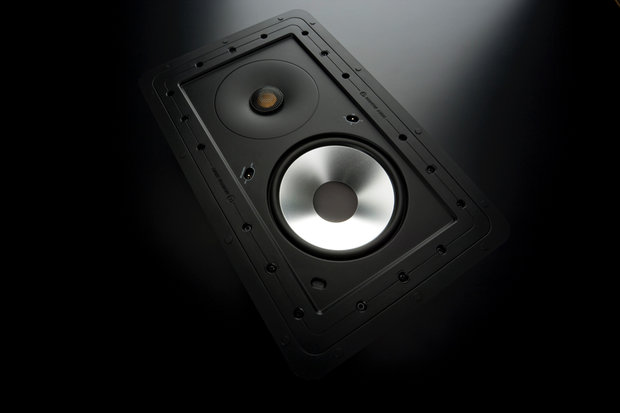

The CP-WT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.

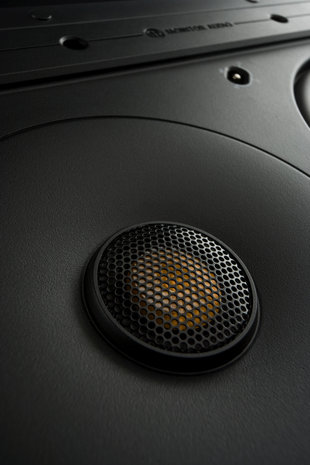

- Pivoting C-CAM Gold Dome Tweeter and C-CAM bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Boundary compensation controls.

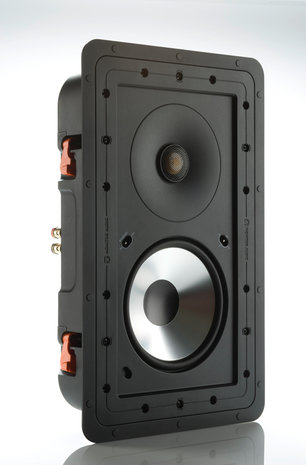

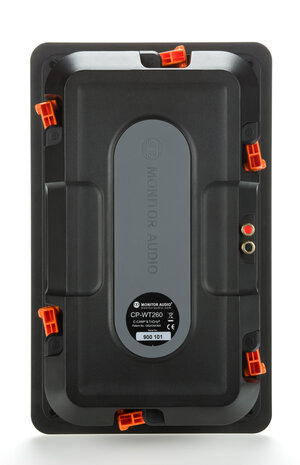

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

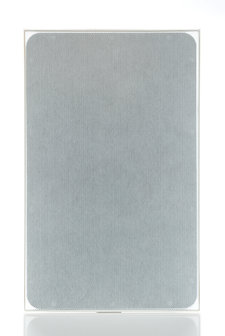

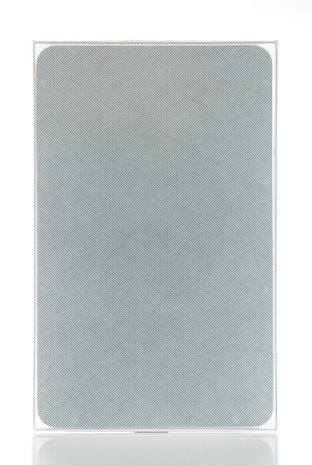

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specifications:
Frequency Response
65 Hz - 25 kHz
Nominal Impedance
6 Ohms
Sensitivity (1W@1M)
88 dB
Maximum SPL
106.9 dBA
Power Handling (RMS)
65 W
Recommended Amplifier Requirements
20 - 65 W
Crossover Frequency
2.6 kHz @ 12 dB / Octave
Drive Unit Complement
2-Way
6˝ C-CAM cone bass driver
1˝ C-CAM pivoting Gold Dome tweeter
Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Dimensions (H x W x D)
415 x 262.5 mm (16 5/16 x 10 5/16 inches)
Overall Depth (Including Grille)
102 mm (4 inches)
Cut-Out Dimensions
381 x 228 mm
(15 x 9 inches)
Mounting Depth
96 mm (3 3/4 inches)
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(RoHS2 Compliant)
Weight
3.31 kg (7 lb 4 oz)
Pre-Construction Bracket
WB8 Pre-Construction Bracket (Green)
