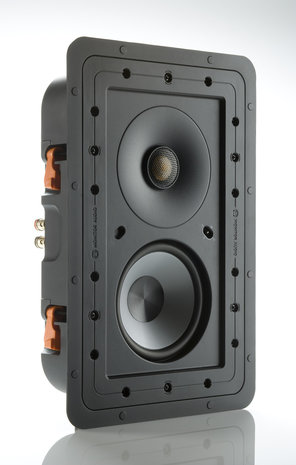

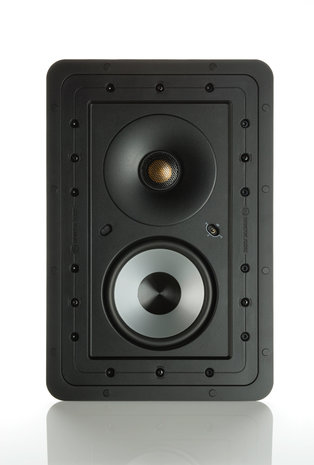

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-WT150 in-wall model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.
- Pivoting C-CAM Gold Dome Tweeter and MMP II bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).

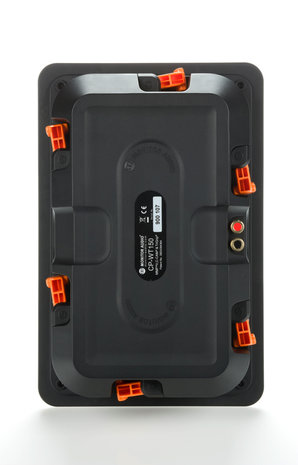

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

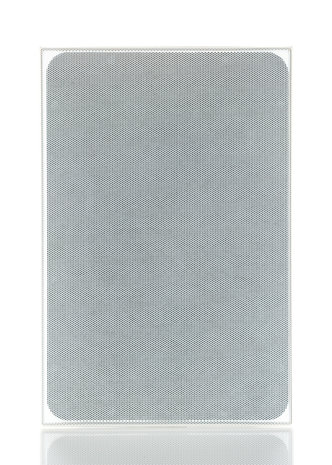

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specifications:
Frequency Response
75 Hz - 25 kHz
Nominal Impedance
6 Ohms
Sensitivity (1W@1M)
85 dB
Maximum SPL
102.8 dBA
Power Handling (RMS)
50 W
Recommended Amplifier Requirements
20 - 50 W
Crossover Frequency
2.8 kHz @ 12 dB / Octave
Drive Unit Complement
2-Way
5” MMP II cone bass driver
1” C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Overall Dimensions (H x W x D)
360.5 x 242 mm (14 3/16 x 9 1/2 inches)
Overall Depth (Including Grille)
102 mm (4 inches)
Cut-Out Hole Diameter
326 x 207 mm (12 13/16 x 8 1/8 inches)
Mounting Depth
96 mm (3 3/4 inches)
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)
Weight
2.65 kg (5 lb 14 oz)
Connection
Gold plated 'push' type terminals
Pre-Construction Bracket
WB6 Pre-Construction Bracket (Purple)
