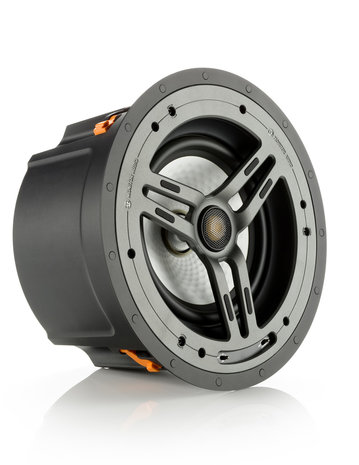

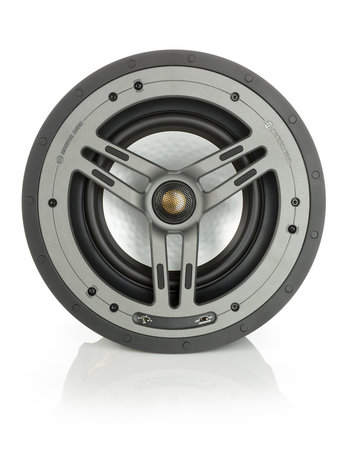

Alongside a pivoting C-CAM tweeter, the CP-CT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.
Technology
- Pivoting C-CAM gold dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Boundary compensation controls.
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specifications
Frequency Response
50 Hz - 25 kHz
Nominal Impedance
6 Ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
109.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 - 120 W
Crossover Frequency
2.5 kHz @ 12dB / Octave
Drive Unit Complement
2-Way
8˝ C-CAM RST cone bass driver
1˝ C-CAM pivoting gold dome tweeter
Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
309 mm (12 3/16 inches)
Overall Depth (Including Grille)
187 mm (7 3/8 inches)
Cut-Out Hole Diameter
274 mm (10 13/16 inches)
Mounting Depth
181 mm (7 1/8 inches)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(RoHS2 Compliant)
Weight
3.74 kg (8 lb 4 oz)
Connection
Gold plated 'push' type terminals
Pre-Construction Bracket
CB10 Pre-Construction Bracket (Light Brown)
