Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.

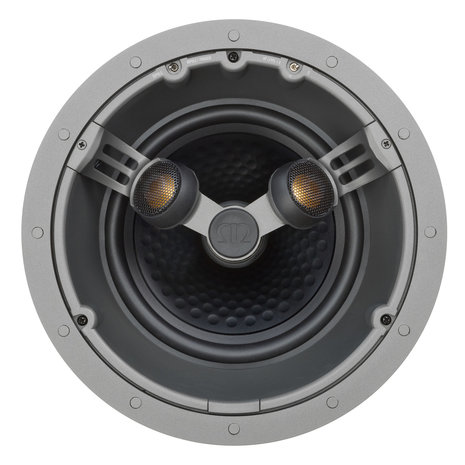

Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM gold dome tweeters mounted at a precise fixed-angle for optimised performance.

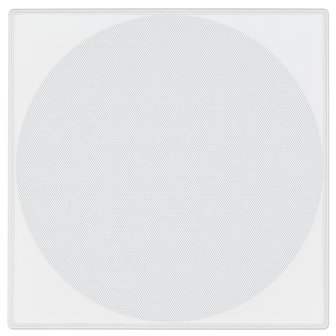

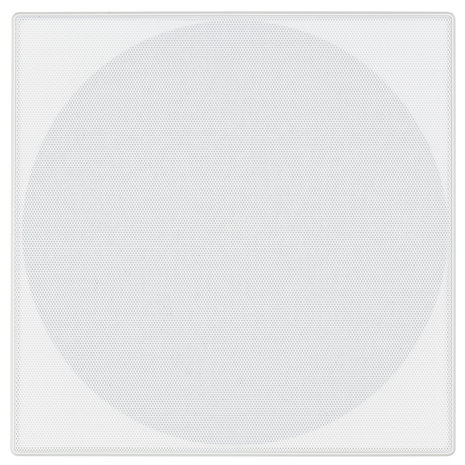

Optional square grille can be used with model.
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8” C-CAM cone bass driver featuring RST
2 x 1” C-CAM fixed angle Gold Dome tweeters
Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch with Additional 12v Trigger Switching
Overall Diameter (Including Grille)
285 mm (11 1/4")
Overall Depth (Including Grille)
160 mm (6 5/16")
Mounting Depth
156 mm (6 1/8")
Cut-Out Hole Diameter
247 mm (9 3/4")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.2 kg (7 lb)
Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)
Back Box
CMBOX-R
