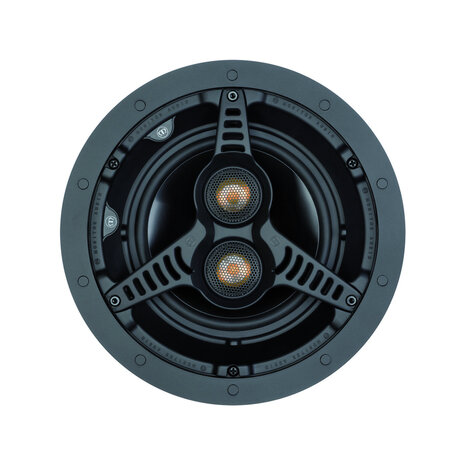

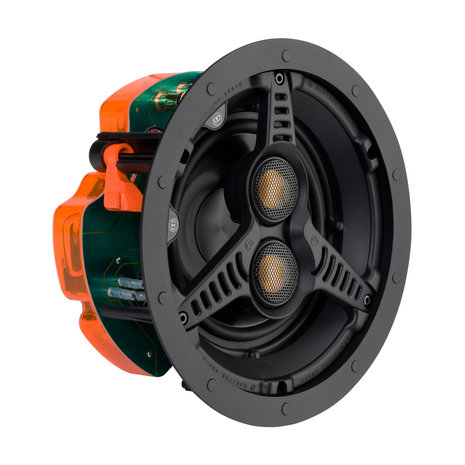

Features dual, independent, pivoting 1-inch C-CAM tweeters and a 6 1/2 inch MMP II dual wound voice coil bass driver, for high performance stereo sound from a single speaker.
Frequency Response
60 Hz – 25 kHz
Nominal Impedance
6 + 6 ohms
Sensitivity (1W@1M)
88,5 dB
Maximum SPL
107.9 dBA
Power Handling (RMS)
65 W
Recommended Amplifier Requirements
20 – 65 W
Drive Unit Complement
6 1/2" MMP II cone bass driver
2 x 1” C-CAM pivoting Gold Dome tweeters
Overall Diameter (Including Grille)
250 mm (9 13/16")
Overall Depth (Including Grille)
118 mm (4 5/8")
Mounting Depth
114 mm (4 1/2")
Cut-Out Hole Diameter
211 mm (8 1/4")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.08 kg (4 lb 10 oz)
Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)
